Contec CMS8000 5 Para Patient Monitor

CMS8000 patient monitor has very useful features that can be used for ICU clinical monitoring with adult, pediatric and neonate patients. Medical staff may select different parameter configurations according to different requirements.

Contec CMS 8000 is having 12.1” color TFT/ LCD screen with real-time data and waveform. It can simultaneously display up to eight-channel waveform and full monitoring parameters, equipped with an optional 48 mm thermal recorder. The CMS8000 Patient monitor can be connected to the central monitoring system via a wired or wireless network to form a network monitoring system.

CMS 8000 can monitor and display ECG, HR,  SpO2, PR, RESP, NIBP and dual-channel temperature parameters. Dual IBP and ETco2 parameters are optional. Contec CMS 8000 integrates parameter measurement module, display and recorder in one device to form compact and portable equipment. Contec patient monitor cms8000’s replaceable internal battery brings a lot of convenience for patient moving.

Key Features of Contec Multipara Patient Monitor CMS 8000 :

• 12.1” Color TFT/ LCD, multi-language interface.


• Parameters:  ECG, SPO2, NIBP, RESP, Dual Temperature, PR


• Optional: Dual IBP, ETCO2, And the thermal printer


• Suitable for adult, pediatric and neonatal patient


• With the standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe.


• Finish all operations with keys and knobs.


• Maximum 8-channel waveform synchronous display.


• Built-in rechargeable lithium battery


• Alarm: Yes, audible and visual alarm, alarm events review


• 72-hours graphic and tabular trends of all parameters


• 72 alarm events of all parameters recall


• 32 seconds full-disclosure waveform review


• 500 NIBP measurement data can be storage and recall


• Date and waveforms color be adjustable


• Arrhythmia analysis and S-T segment analysis


• Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.


• Heart rate variability (HRV) analysis function


• NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.


• Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.


• Drug concentration calculation and titration table functions.

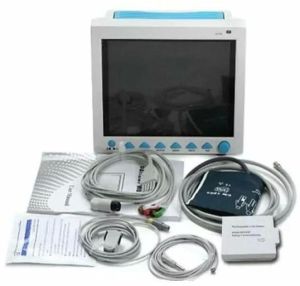

In the Box

Cms 8000 monitor, ECG Cable, SpO2 Sensor, NIBP Cuff (Adult) with cable, Temperature Sensor, Power Cable, User Manual
