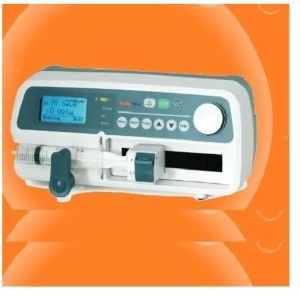

KellyMed KL-602 Syringe Pump

The Kellymed KL-602 Syringe Pump is a medical device designed to deliver accurate and controlled amounts of medication to patients in a clinical setting. It is commonly used in hospitals, clinics, and other healthcare facilities to administer drugs, fluids, and nutrients intravenously through a syringe.

The pump is a compact and lightweight device that can be easily transported and attached to an IV pole or mounted on a bedside table. It has a user-friendly interface with a color LCD display and touchpad controls that allow healthcare professionals to set and adjust the infusion rate, volume, and other parameters.

The Kellymed KL-602 Syringe Pump can accommodate different sizes of syringes, ranging from 10ml to 60ml, and can deliver medication at a flow rate of 0.1ml/hour to 1500ml/hour. It also has safety features such as occlusion detection, air bubble detection, and low battery alarm to ensure the safe and efficient delivery of medication.

Key Features:

• Applicable syringe size: 10, 20, 30, 50/60 ml.


• Automatic syringe size detection.


• Automatic anti-bolus.


• Automatic calibration.


• Drug library with more than 60 drugs.


• Audiovisual alarm insures further safety.


• Wireless management by Infusion Management System.


• Stackable up to 4 Syringe Pumps (4-in-1 Docking Station) or 6 Syringe Pumps (6-in-1 Docking Station) with single power cord.


• Easy to use operation philosophy


• Recommended model by worldwide medical staff.

User-friendly

• The pump has built-in connection design ensures combination of several pumps, flexible, convenient and practical.


• Key and rotary knob can meet different use demand.


• Large LCD screen, adjustable backlight.

VTBI

• 0.1-9999 ml


• ＜1000 ml in 0.1 ml increments


• ≥1000 ml in 1 ml increments

Flow Rate

• Syringe 10 ml: 0.1-400 ml/h


• Syringe 20 ml: 0.1-600 ml/h


• Syringe 30 ml: 0.1-900 ml/h


• Syringe 50/60 ml: 0.1-1300 ml/h


• ＜100 ml/h in 0.1 ml/h increments


• ≥100 ml/h in 1 ml/h increments

Infusion Mode

• Flow rate: ml/min, ml/h


• Time-based


• Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h etc.

Alarms

Occlusion, near empty, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, standby, Pressure sensor error, syringe installation error, syringe drop off

Additional Features

Real-time infused volume, automatic power switching,automatic syringe identification, mute key, purge, bolus, anti-bolus, system memory, key locker
